FU6 Fire Fighting Drone

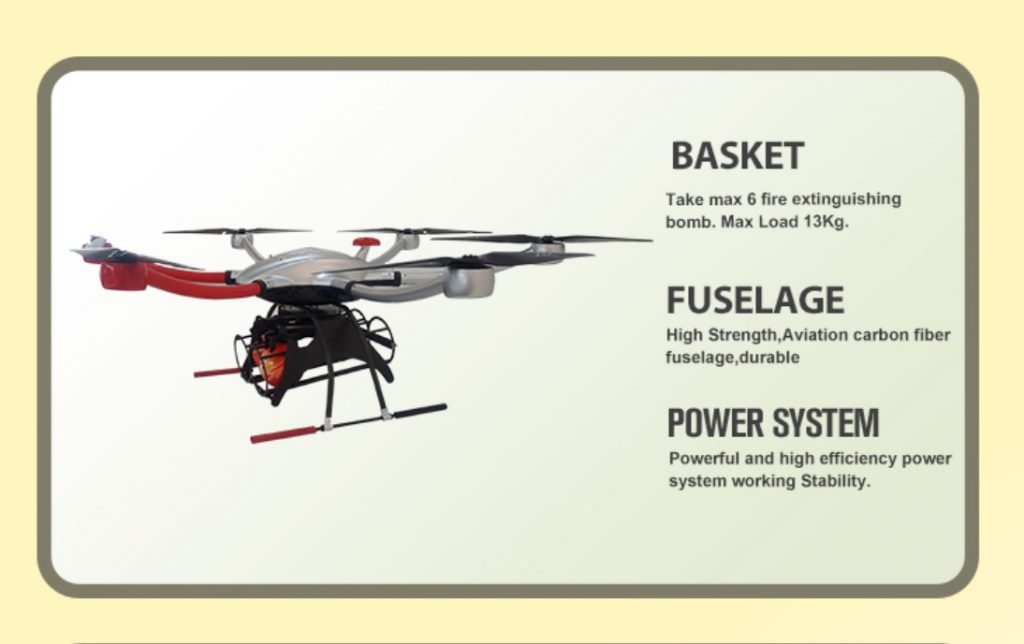

The FU6 Fire Fighting Drone main frame is all made of a new carbon fibre material. This provides a safe and fireproof power system. The digital pan/scan combines GPS with accurate fire locating. Real-time monitoring can perform night flight missions. Wireless digital transmission allows you to avoid field wiring and powerlines. Fire extinguishing drones not only can be quickly deployed, but also can be used for fire detection and rapid fire extinguishing. In urban high-rise buildings and forest areas on a large scale, so they are widely used in various fields.
The unique folding design of the fire extinguishing drone allows for the arm to fold down for compact and convenient transportation. The drone can be equipped with dedicated gimbal, camera, image transmission and other equipment. This way you can realize multi-purpose functions such as surveying and mapping applications, aerial dynamic detection. Also security monitoring, and photography aerial photography. Adopting a carefully developed Gemini flight control system, combined with a powerful ground station monitoring system. This allows you to monitor the status of two independent sensors at the same time. When any sensor has a deviation or error, it will automatically and seamlessly switch to a backup device and alert the user (GPS is interfered, the power is insufficient, and the mobile phone will vibrate to alert the user). This thereby reduces the system failure rate to a very low probability.
Specifications:
| Overall Length | 2260mm |
| Overall Width | 2260mm |
| Overall Height | 530mm |
| Max Take Off Weight | 28kg |
| Max Mission Capacity | 13kg |
| Max Flight Duration | 55 minutes |
| Max Flight Height | 300m |
| Safe Take Off and Landing Wind Speed | ≤5 Level |
| Dry Chemical Projectile Data | # |
| Sphere Diameter | 150mm |
| Sphere Weight | 1150±150g |
| Alarm Loudness | 115dB |
| Effective Range | 3 m³ |
| Fire Extinction Time | ≤3s |
| Working Environment Temperature | ﹣10°C～70°C |
| Fire Extinction Level | A/B/C/E/F |
| Using Method | Drop it into Fire Position |
| Expiration Date | 5 years |

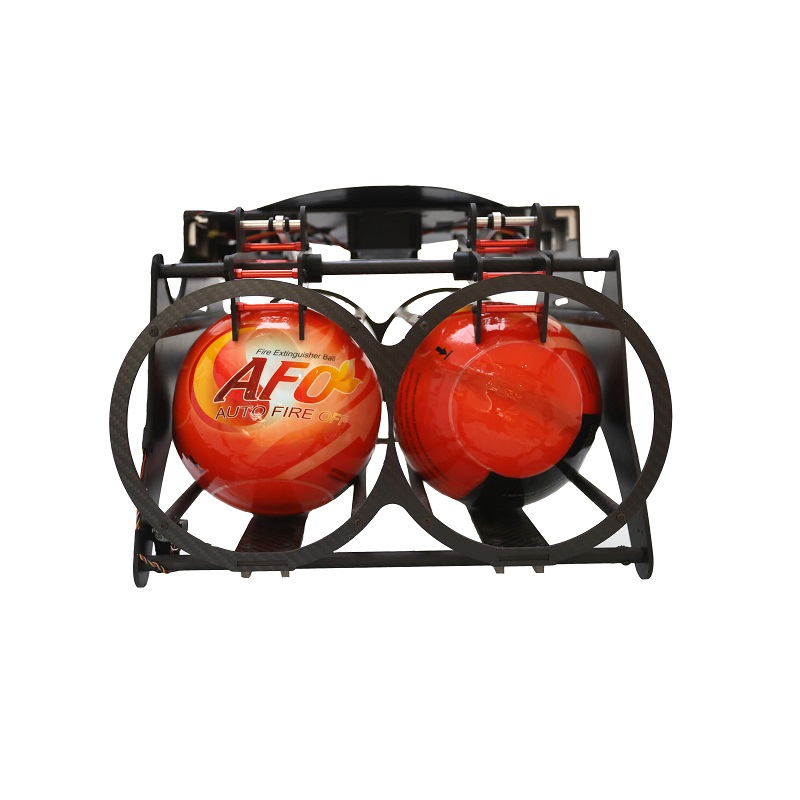

| Suspension and Release Equipment Data | # |
| Net Weight | 1.7kg |
| Overall Size | 470*317*291mm |
| Material | 7075 Aviation Aluminum/Carbon Fiber |
| Voltage | 24v |
| Release Type | Single/Double bomb |
| Suggestion of Release Height | 5-50m |
| Max Capacity | 6 units |
| Communication Connection | PMW Signal |
See a video about the fire bombs here
